Verifying the DICOM Connection

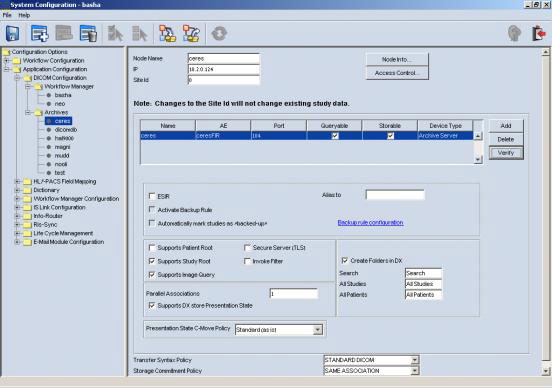

1.  Open System Configuration.

2.  Select Configuration Options --> Application Configuration --> DICOM Configuration --> Archives --> <Server>.

3.  Choose a server name.

4.  Click Verify to confirm the connection.

A dialog box appears confirming the connection. If you are made changes to the selected server, you will be prompted to save your changes before you can continue.
